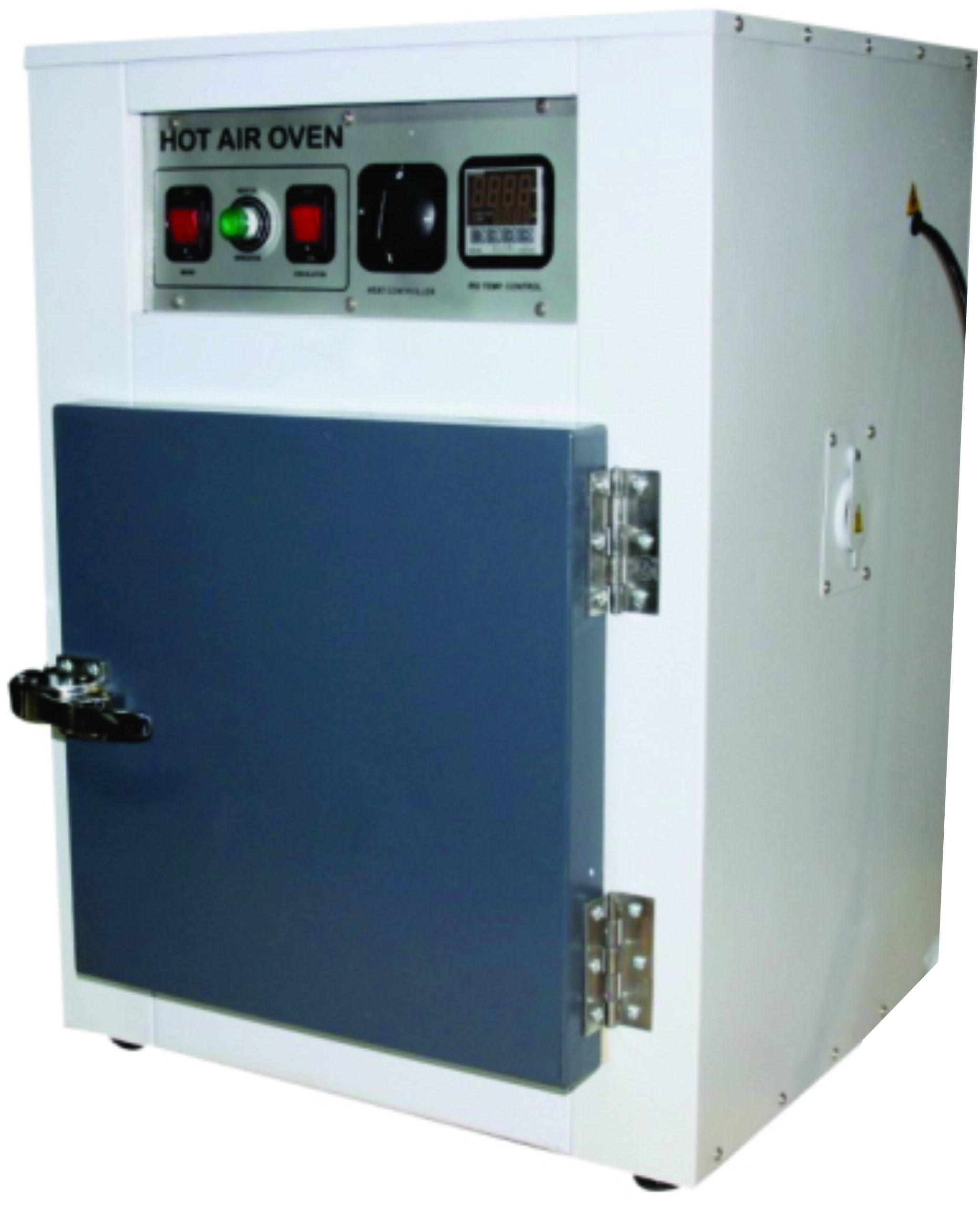

Hot Air Universal Ovens

Hot air ovens are widely used in medical industries to sterilize equipment and other material in laboratories.

Construction: Double-walled fabrication with inner chamber made of richly anodized aluminum or highly polished stainless-steel sheets.
Insulation: The space between the inner chamber and the outer wall is filled with high-grade mineral wool to minimize heat loss and attain quick and uniform heating.
Door: Double-walled door with synthetic rubber/fiber gasket.
Ventilation: Ventilation slides on two sides to control inner air/vapor circulation, fitted with beaded heating elements.
Heat Distribution: Beaded heating elements are placed in ribs at the bottom and sides for uniform heat distribution.
Power: Operates on 220/230 volts AC supply.

Equipped with a thermostat for temperature control from +5°C ambient to 250°C ±2°C at 100°C.
Includes an L-type capillary thermometer.

Description

Model No.	Chamber Size (mm)	Chamber Size (inches)	No. of Shelves	Capacity (Liters)	Load Approx.
OV-28 TH	300×300×300	12″×12″×12″	2	28	0.60 KW
OV-45 TH	350×350×350	14″×14″×14″	2	45	0.70 KW
OV-65 TH	400×400×400	16″×16″×16″	2	65	0.80 KW
OV-95 TH	450×450×450	18″×18″×18″	2	95	1.27 KW
OV-125 TH	600×450×450	24″×18″×18″	2	125	1.75 KW
OV-224 TH	600×600×600	24″×24″×24″	2	224	2.00 KW
OV-252 TH	900×600×450	36″×24″×18″	2	252	2.50 KW
OV-336 TH	900×600×600	36″×24″×24″	2	336	2.50 KW
OV-720 TH	900×900×900	36″×36″×36″	3	720	3.00 KW
