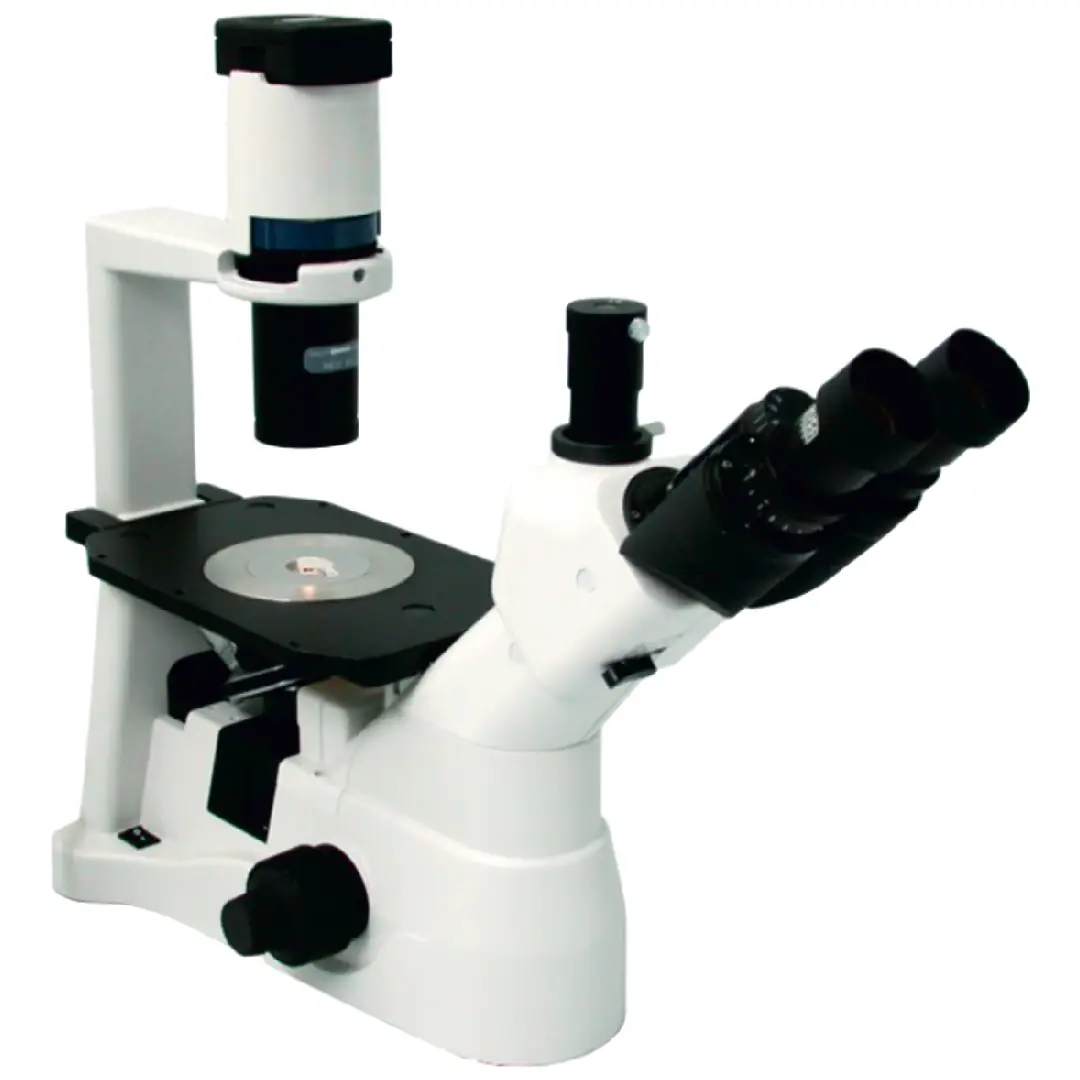

INVERTED TISSUE CULTURE MICROSCOPE MODEL: ITC-VICTORY
The Inverted Tissue Culture Microscope Model ITC-Victory is a specialist instrument intended for accurate tissue culture observation and analysis. Its ergonomic form and cutting-edge optics make it perfect for biological research and medical diagnostics.
Trinocular Observation Head
Siedentopf Observation head inclined at 45??.
Diopter adjustment ring on ocular tube.
Inter-pupillary distance from 48mm to 75mm.
Eyepiece : Eyepieces EWF 10X (Paired) FOV 18mm.
Description
Description
Objectives (Anti fungus coated)
LWD Plan 4X
LWD Plan phase 10X
LWD Plan phase 20X PH
LWD Plan 40X
Mechanical Body
Quadruple nosepiece.
PRE-FOCUSSING LEVER & TENSIONADJUSTMENT RING are on focusing mechanism.
Hard coated mechanical stage is 180mm×165mm.Movement 50mmX40mm.
Illuminator
12V/20W Halogen lamp with spherical collector lens, continuous regulation of the illumination.
Condenser
Long working distance 45mm.Condenser with N.A. 0.35. Field diaphragm, Pull out filter socket.
Filter
Blue, Green, Yellow Glass Filter.
Standard Accessories
Electric Cable, Fuse, Vinyle dust cover, Operating Manual, 12V/20W Halogen bulb, STYRO FOAM molded pack.
