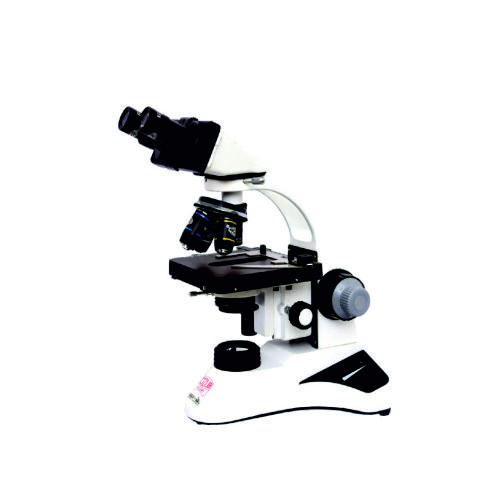

PATHOLOGICAL MICROSCOPES MEDI-LUX SERIES WITH SEMI-PLAN/PLAN OPTICS

Body: –Ergonomic designed for comfortable prolonged microscopy, highly rigid, strong, easy to carry, Durable stain proof finish, all critical movements based on ball bearing and wire guides.

Viewing Bodies: – Monocular, Binocular or Trinocular (any one) observation Head inclined at 30/45° Rota table to 360º with inter pupillary distance: 48-75mm, +5 diopter adjustable with locking device.

Nosepiece: Smooth revolving Quadruple, Ball bearing loaded nosepiece with Rubber grip, positive stops for centered alignment of objectives.

Focusing: –Coaxial Coarse & fine Movement slides smoothly on Ball Bearing
Guide Ways which provides the highest Degree of sensitive more than two
microns fine focusing reading to 0.002 free from back lash, with locking device
to protect valuable slides (upper limit stopper).

Mechanical Stage: – Low drive Horizontal coaxial mechanical stage working on Ball Bearing Guide Ways of 145 x 140 mm with fine Venire graduations reading 0.1mm, X & Y movement 75mmx55mm of slides.

Condenser: –Pre centered Abbe condenser NA 1.25 with aspheric lens with Iris diaphragm Built-in swing out filter holder, up-down movement through rack & pinion on stainless steel guides.

Illumination:-Heavy rectangular sturdy base with built in LED Illumination (Battery backup optional) or 6v20 halogen lamp, on/off switch, continuously variable light intensity controlled regulator & quick change bulb provision workable on 110-240v, 50 Hz AC.

Packing: – complete with duster, cover, Necessary cords & cables & instruction manual
