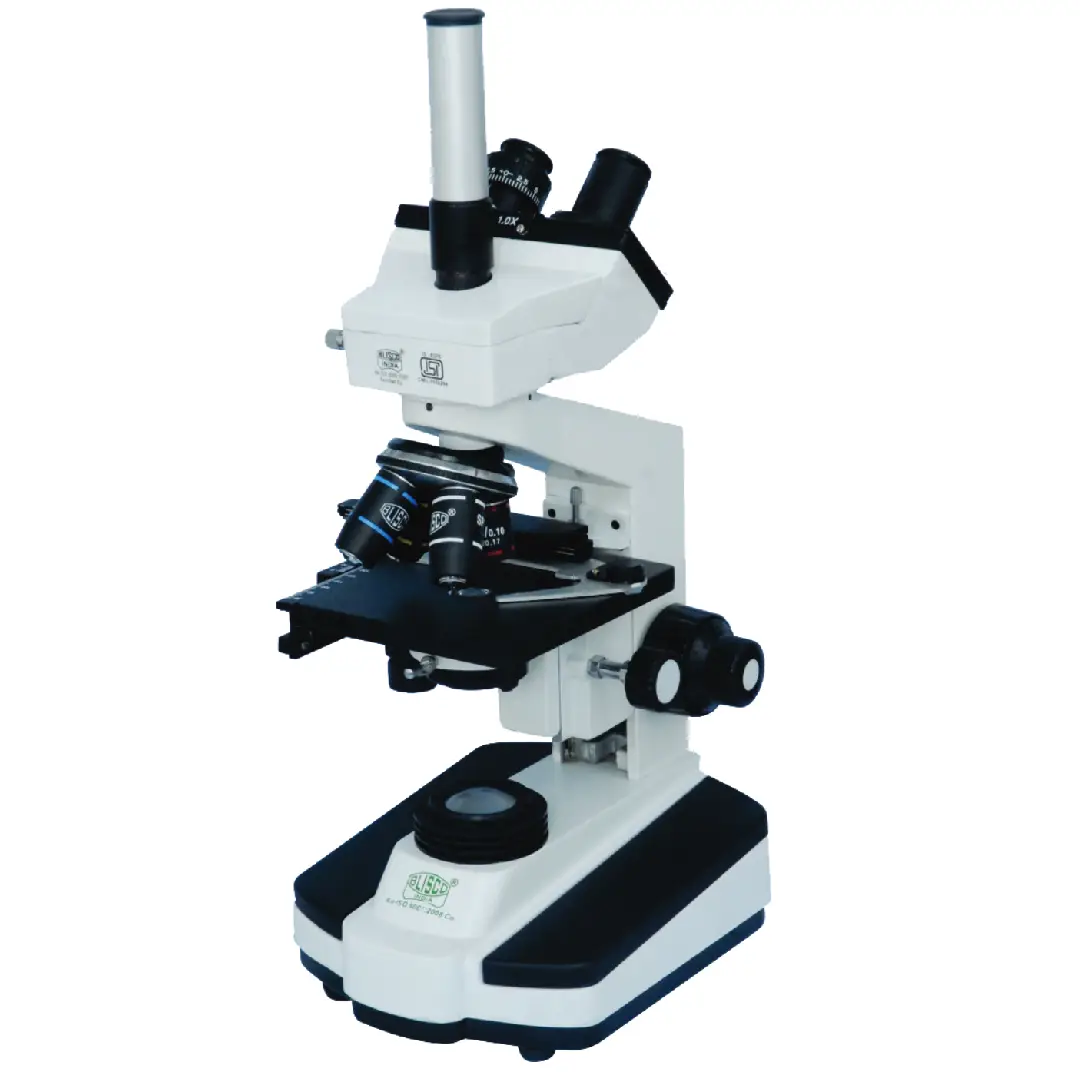

Pathological Trinocular Microscope CX-114
Body:- Ergonomic designed for comfortable & prolonged microscopy.
Viewing Bodies: – Monocular, Binocular or Trinocular (any one) observation Head inclined at 45° Rota table to 360° with inter pupillary distance: 48-75mm, +5 diopter adjustable with locking device.
Nosepiece: Smooth revolving Quadruple, Nosepiece with Rubber grip..
Focusing: – Coaxial Coarse & fine Movement, slides smoothly travels on Ball Bearing Guide Ways which provides the highest Degree of sensitive free from back lash in operating, with locking device.
Mechanical Stage: – Low drive Horizontal coaxial mechanical stage working on Ball Bearing Guide Ways of 145 x 140 mm with fine Venire graduations reading 0.1 mm, X&Y movement 75mmx55mm of slides.
Condenser: – Abbe condenser N.A.1.25 swings out filter holder, iris diaphragm, Up-down movement through rack & pinion
Illumination: –with built in LED Illumination (Battery backup optional) or 6v20 halogen lamp, on/off switch, continuously variable light intensity controlled regulator & quick change bulb provision workable on 110-240v, 50 HzAC.
Packing: – Microscope complete with duster, cover, Necessary cords & cables & instruction manual in Thermocol Box.
OPTICAL COMBINATION
Objective: DIN Achromatic objectives 4X. (Ν.Α.0.10), 10X, (Ν.Α. 0.25), 40Χ (Ν.Α.0.65) SL, 100X (Ν.Α. 1.25) oil (SL).
Eyepices: High Point wide field eye piece 10x & 5x Huygenian
Description
Description
The advanced device known as the CX-114 Pathological Trinocular Microscope was created to satisfy the exacting requirements of clinical diagnostics, histology, and pathology. It is a mainstay in professional labs and educational institutions where meticulous examination and analysis of biological specimens are crucial, combining cutting-edge optical technology with ergonomic design.
The CX-114 is outfitted with top-notch achromatic objectives and wide-field eyepieces, guaranteeing remarkable optical clarity and resolution. This makes it possible for scientists, doctors, and educators to closely analyze pathological specimens, including microscopic cellular structures and tissue sections. The microscope’s flexible magnification range, which usually spans from 40x to 1000x, allows for thorough observation at different scales, which aids in precise diagnosis and in-depth study.
The CX-114 is built with a sturdy metal frame that puts stability and durability first, which is essential for dependable operation in harsh laboratory settings. Because of its robust construction, which reduces vibrations and keeps optical components precisely aligned, it consistently produces high-quality images and operates dependably over extended periods of time.
The microscope’s precision focusing capabilities, which include coarse and fine adjustments, make it easy for users to get clear, sharp images. This sharp focus makes it easier to document abnormal materials in detail and analyze them thoroughly, both of which are essential for accurate diagnosis and in-depth research projects.
The advanced condenser system integrated in the CX-114 usually consists of an Abbe condenser with an iris diaphragm. This arrangement offers fine-grained control over contrast and illumination, maximizing the display of specimen details in a range of lighting scenarios. Contemporary LED lighting technology ensures a longer bulb lifespan and ideal viewing conditions by producing brilliant, homogeneous light while minimizing heat emission.
