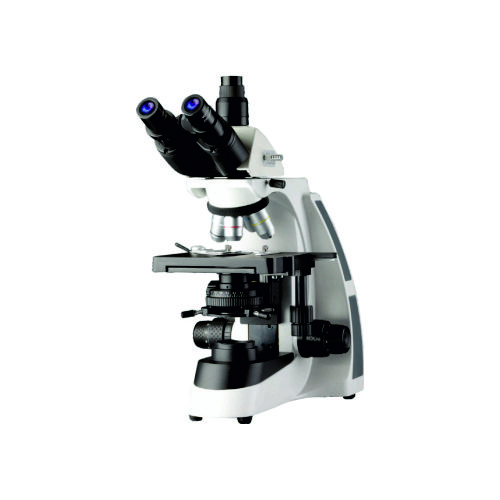

RESEARCH GRADE MEDI-VISION SERIES MICROSCOPES FOR FACULTY & OTHER RESEARCH WORKS

Body: –Ergonomic designed Single Mold & Low Drive Coaxial mechanism for comfortable & prolonged microscopy, highly rigid, strong, easy to carry, Durable stain proof finish, all critical movements based on ball bearing and wire guides.

Viewing Bodies: – Side-N-Top (Butter fly type) 30° inclined Trinocular observation Head, Incorporated with anti fungus coated, anti reflection coated Prisms, Rota table to 360º with inter pupillary distance: 48-75mm, +5 diopter adjustable with locking device.

Nosepiece: Smooth revolving Quadruple, Ball bearing loaded nosepiece with Rubber grip, positive stops for centered alignment of objectives.

Focusing: -Coaxial Coarse & fine Movement slides smoothly on Ball Bearing Guide Ways which provides the highest Degree of sensitive more than two microns fine focusing reading to 0.002 free from back lash, with locking device to protect valuable slides (upper limit stopper).

Mechanical Stage: – Low drive Reckless Horizontal coaxial mechanical stage working on Ball Bearing Guide Ways of 150 x 216 mm with fine Venire graduations reading 0.1mm, X & Y movement 75mmx55mm of slides

Condenser: -Pre centered Abbe condenser NA 1.25 with aspheric lens with Iris diaphragm Built in swing out filter holder with filter, arrangement to adopt dark field, phase contrast, Simple polarizer unit, up-down movement through rack & pinion on stainless steel guides.

Illumination:-Heavy rectangular sturdy base with built in LED Illumination (Battery backup optional) or 6v20 halogen lamp with Field diaphragm arrangement to hold filter, on/off switch, continuously variable light intensity controlled regulator & quick change bulb provision workable on 110-240v, 50 Hz AC.
