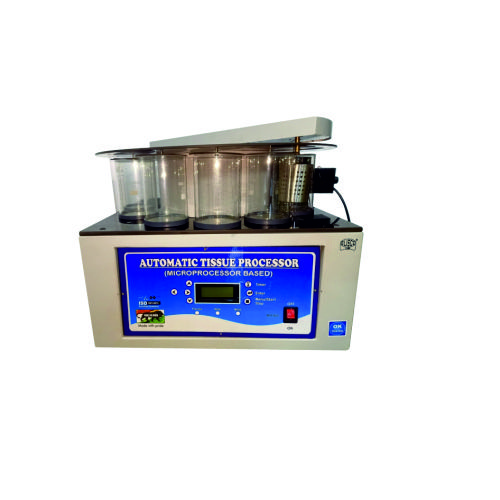

Tissue Processor
-
Steps of Processing Tissue: 12 steps
-
Glass Containers: 10, each with 1L capacity
-
Wax Cups: 2, each with 1L capacity
-
Temperature Range (Wax Cups): 45–85°C ±3
-
Process Timing:
-
Each cup: 0–59 hr 59 min
-
Delay Process: 0–59 hr 59 min
-
-
Tissue Basket Motion: Vertically reciprocal, 3 times/min
-
Tissue Basket Specification:
-
Barrel tissue basket: φ 95 × 80 mm
-
Layer nacelle: φ 95 × 80 mm (5 layers)
-
-
Weight: < 60 kg
-
Rated Voltage: 220V, 50Hz or 110V, 60Hz
-
External Dimensions: φ 660 × H 550 × 680 mm (tip top)
Description
Description
Technical Specifications
-
Computer-controlled full workflow ensures stable operation
-
Exchange jar and movable perch for flexible, easy operation
-
Power outage alarm protects tissue preservation
-
Agitation dehydration mode improves reagent and paraffin penetration
-
User-friendly English screen display
-
Wide timing range:
-
Delay time: up to 59 hr 59 min
-
Max working time per container: 59 hr 59 min
-
Minimum time interval: 1 min
-
-
Constant temperature wax jars ensure high precision and reduced contamination
-
Includes nine 1.2L reagent containers for real-time observation of tissue changes
-
Optional backup power supply supports continued operation during outages (4–16 hrs)
