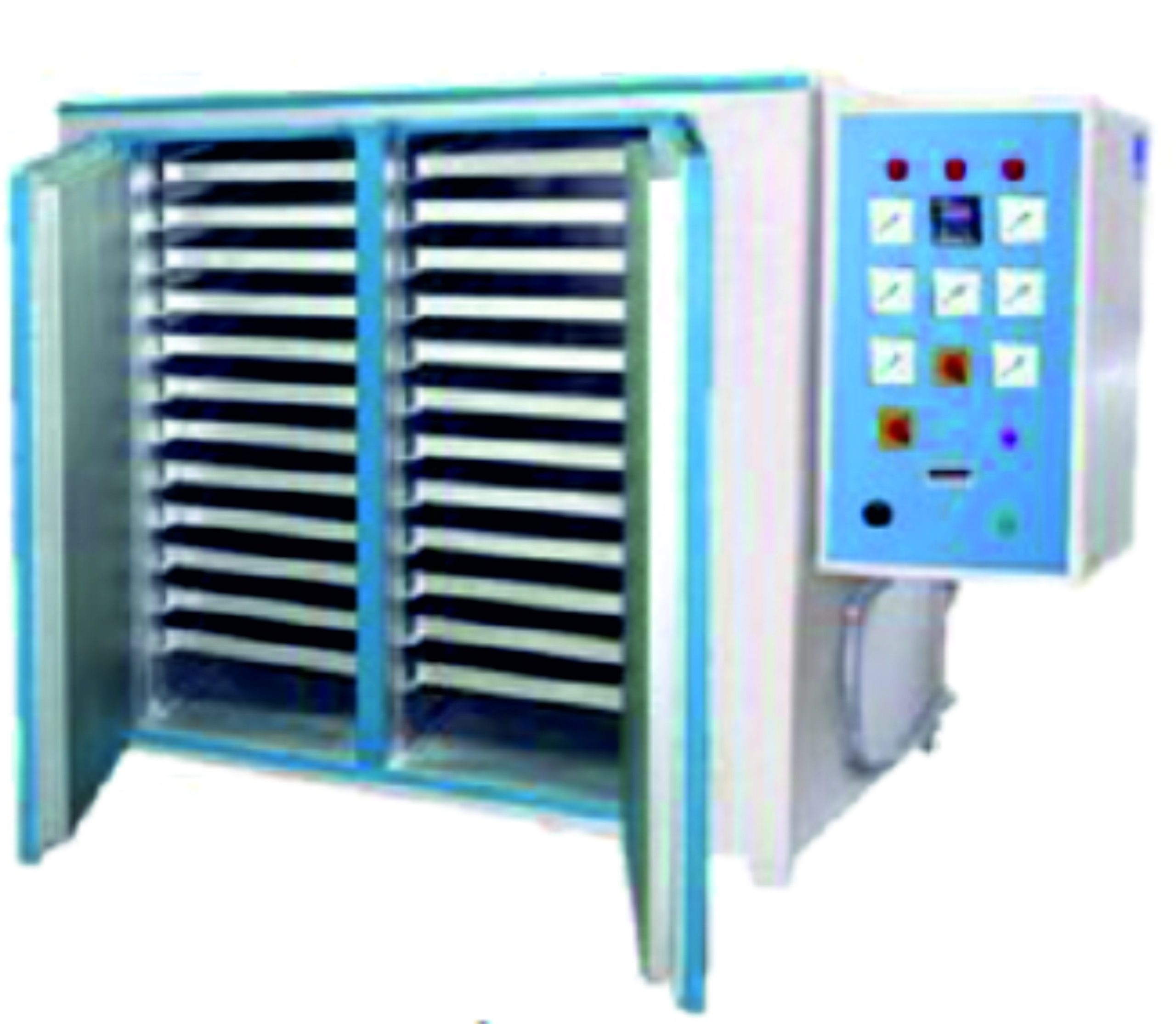

TRAY DRYER (OV-TD Series Digitally Controlled)
TRAY DRYER (OV-TD Series Digitally Controlled): – Body is fabricated on heavy duty angle channel frame with outer body made of Mild Steel sheet dully painted in hammer tone paint or in powder coating paint and inner body made of Stainless-Steel sheet. The 75mm gap between the two walls will be Filled by high grade temperature resistant glass wool as insulation. Air circulation fan blade motor is given to circulate the heat in the chamber and to maintain equal Temperature on all sides. Temperature range +5ºC ambient to 250 ºC controlled by digital temperature controller cum indicator with a high-class panel attached on the body.
Description
Description
| Model No. | Chamber Size (HxWxD) mm | No. of Trays | Tray Size (Inches) | |
|---|---|---|---|---|
| OV-TD-8 | 430×840×650 | 8 trays | 16″×32″×1¼” | |
| OV-TD-12 | 430×840×910 | 12 trays | 16″×32″×1¼” | |
| OV-TD-24 | 910×840×910 | 24 trays | 16″×32″×1¼” | |
| OV-TD-48 | 960×1270×1450 | 36 trays | 16″×32″×1¼” | |
| OV-TD-96 | 960×1700×1700 | 48 trays | 16″×32″×1¼” |
🔧 Optional Accessories:
-
Aluminum Trays (16″x32″x1¼”)
-
Stainless Steel Trays (16″x32″x1¼”)
-
Microprocessor PID Digital Temperature Controller with timer/alarm
