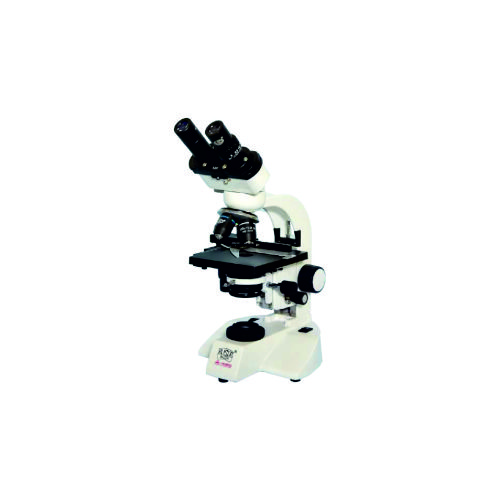

Pathological Binocular Microscopes Model Labstar-B
Body: – The body is well designed, Metal Bodied biological microscope for Students in Medical colleges & other educational institutes.
Viewing Bodies:-Observation Head Binocular inclined at 45°, rotatable to 360° with locking device.
Nosepiece:- Smooth revolving, quadruple nosepiece with Rubber grip, positive stops for centered alignment of objectives.
Focusing: – Separate Coarse & fine Movement system provides the highest Degree of sensitive with locking device to protect valuable slides.
Mechanical Stage: – Low drive Horizontal coaxial mechanical stage of 145 x 140 mm.
Condenser: – Abbe N.A. 1.25 & iris diaphragm with built in swing out filter holder and up-down movement through rack & pinion.
Illumination: – Heavy rectangular sturdy base with built in LED COOLED BRIGHT Illumination on/off switch, continuously variable light intensity controlled regulator. Suitable for 220V, 50 Hz AC supply.
Packing:-complete with duster, cover, Necessary cords & cables & instruction manual.
(a) Packed in Thermocol Box & Card Board Box.
(b) Packed in Thermocol Box & Wooden Box.
Description
Description
The pinnacle of accuracy and dependability, the Labstar-B Pathological Binocular Microscope was painstakingly designed for specific uses in pathology, histology, and clinical diagnostics. It satisfies the rigorous requirements of professional laboratories and educational institutions thanks to its ergonomic features and powerful optical components.
With premium achromatic objectives and wide-field eyepieces, the Labstar-B performs exceptionally well optically, guaranteeing outstanding clarity and resolution. This makes it possible to precisely examine and analyze pathological material, such as tissue slices and cellular structures, in great detail. Its magnification ranges from 40x to 1000x on average, allowing for detailed observation at different scales.
Constructed with a sturdy metal framework, the Labstar-B guarantees longevity and stability—two essentials for reliable operation under demanding conditions. Its accurate focusing mechanisms, which include coarse and fine adjustments, make it simple for users to capture photos that are clear and sharp. This capacity facilitates precise analysis and thorough recording of pathological results, which are necessary for both study and diagnosis.
A complex condenser system, commonly consisting of an Abbe condenser with an iris diaphragm, is integrated into the microscope. This arrangement improves control over contrast and brightness, guaranteeing the best possible visibility of specimen features in a range of lighting scenarios. Modern LED lighting reduces heat emissions and lengthens bulb lifespan while providing the brilliant, homogeneous light needed for precise microscopy.
The Labstar-B is an essential tool for researchers, educators, and medical professionals since it performs exceptionally well in pathological studies, histological examinations, and clinical diagnoses. Its sophisticated optics and sturdy design enable in-depth investigation and thorough comprehension of pathological specimens, advancing our grasp of medicine and improving diagnostic procedures.
